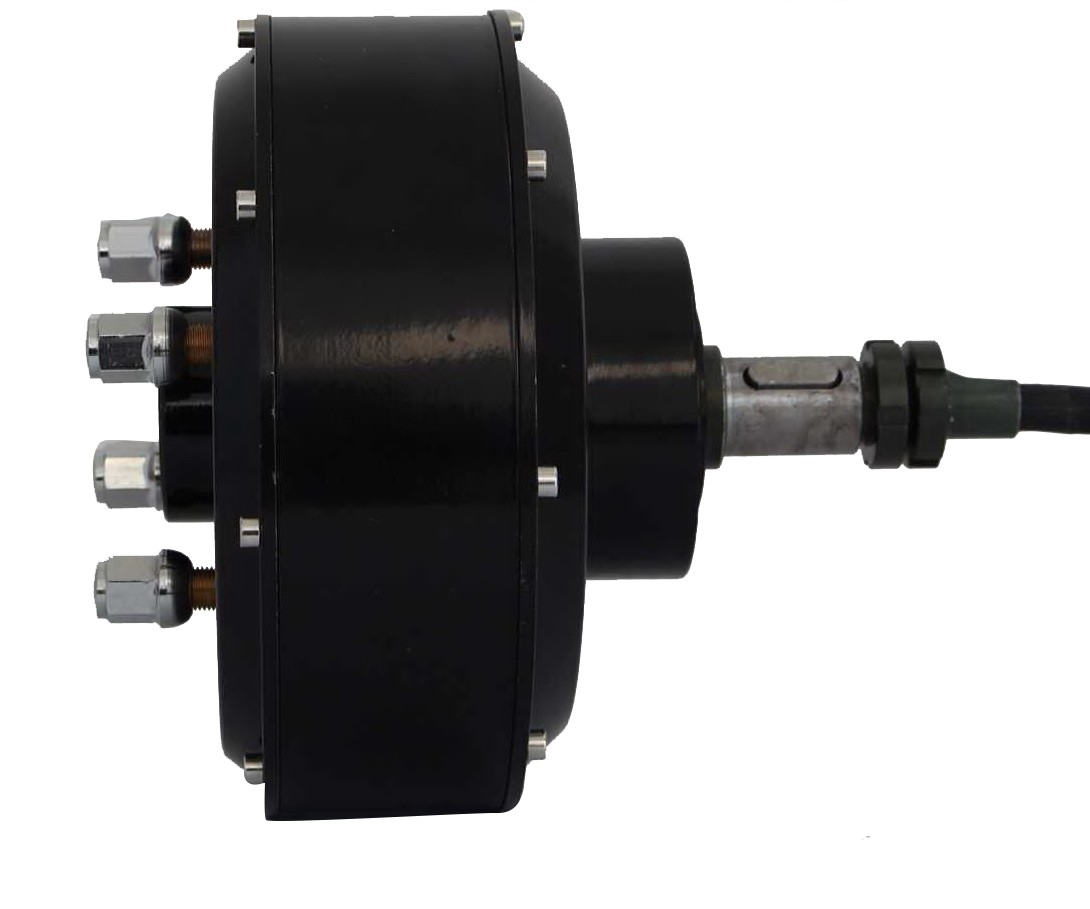

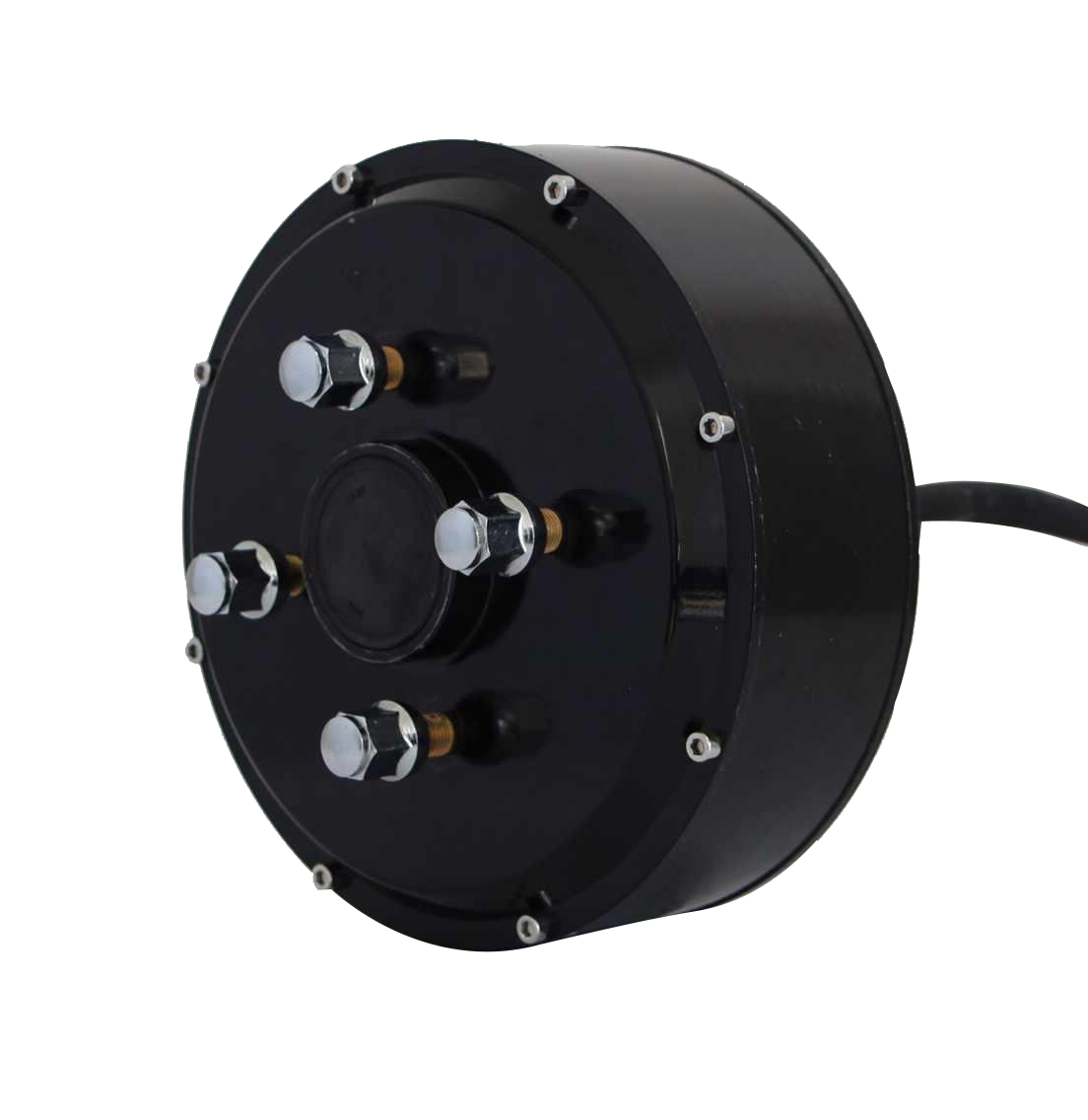

QS205 Single Shaft Car Hub Motor(40H) 1000W V2 Type

QS205 Single Shaft Car Hub Motor(40H) 1000W V2 Type

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnet

2. Motor design: Single axle out without rim

3. PCD for rim installation: 4 x100mm

4. CB:60MM

5. Magnet Height: 40MM

6. Pole Pairs: 23 pairs

7. Rated Power: 1000W

8. Max Power: 1800W

9. Rated Voltage: 48V( 60V/72V Can be optional)

10. Max No-load RPM: 680RPM(Can be customized)

11. Max Torque: 120N.M

12. Max Efficiency: 89%

13. Continious current:34A

14. Max current:50A

15. Brake type: Disc brake

16. Cross Section of Phase wire: 8 mm2

17. Hall sensor phasing angle: 120 degree

18. Temperature Sensor: Optional

19. Max. Working Temperature: 70 degree, Peak 120 degree

20. Waterproof Grade: IP66

21. Color: Black

22. N.W./ G..W. : 15kgs / 16kgs

23. Package Size: 34*34*33CM
