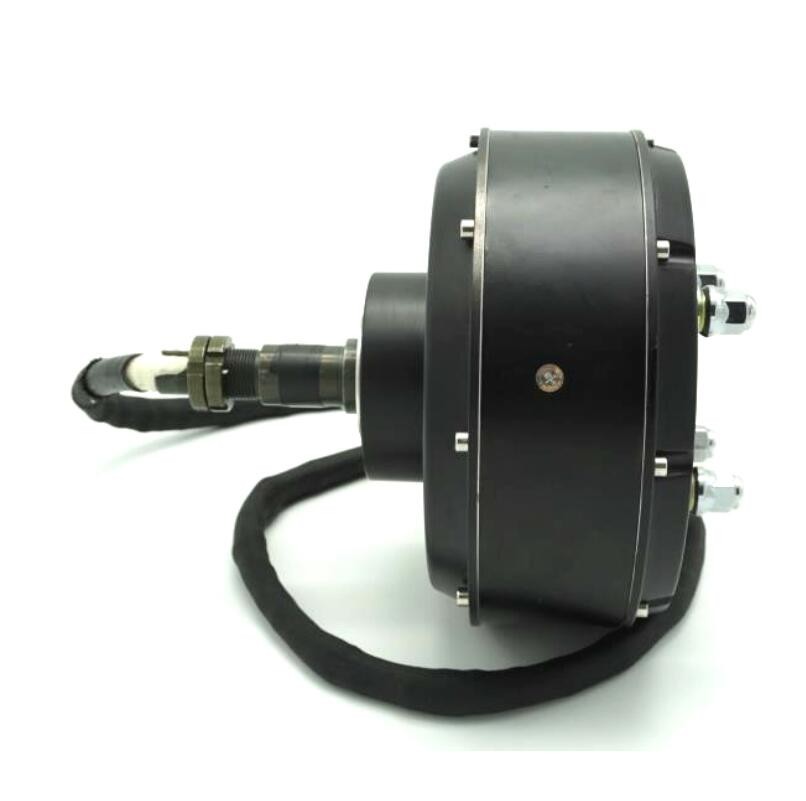

QS205 Single Shaft Car Hub Motor(40H) 1500W V3 Type

QS205 Single Shaft Car Hub Motor(40H) 1500W V3 Type

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnet

2. Motor design: Single axle out without rim

3. PCD for rim installation: 4*100mm

4. CB:60MM

5. Magnet Height: 40MM

6. No. of Pole Pairs: 23 pairs

7. Rated Power: 1000W

8. Max Power: 2000W

9. Rated Voltage:48V,60V,72V

10. Max No-load RPM: 600RPM

11. Max Torque: 120N.M

12. Max Efficiency: 90%

13. Continious current:39A

14. Max current:55A

15. Brake type: Disc brake

16. Cross Section of Phase wire:6mm2

17. Hall sensor phasing angle: 120 degree

18. Temperature Sensor: KTY83-122

19. Max. Working Temperature: 70-120 degree, Peak 150 degree

20. Waterproof Grade: IP66

21. Color: Black

22. N.W./ G..W. : 14kgs / 15kgs

23. Package Size: 34*34*33CM
