QS254 16in 30H 1500W V1 Type

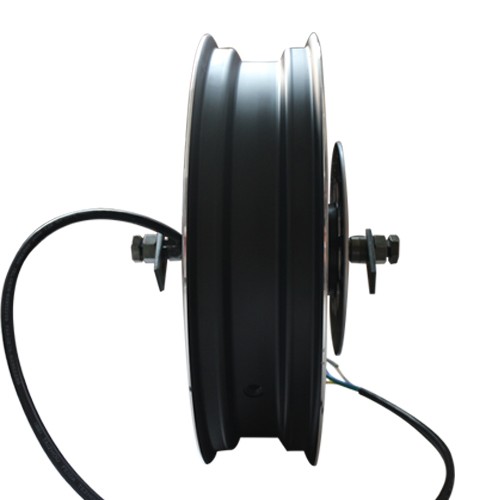

QS254 16inch E-Scooter Hub Motor(30H) 1500W V1 Type

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnet

2. Motor design: Double axle out with 16inch rim

3. Rim size:2.75x16,3.5x16

4. Matching Tire: 100/90-16, 120/70-16, 130/70-16

5. Magnet Height: 30MM

6. Pole Pairs: 24 pairs

7. Rated Power: 1500W

8. Max Power: 2700W

9. Rated Voltage: 48V,60V,72V

10. Max. Speed: 35KPH-60KPH

11. Max No-load RPM: 750RPM(Can be customized)

12. Max Torque: 98N.M

13. Max Efficiency: 86%

14. Continious current:36A

15. Max current:45A

16. Brake type: Disc brake

17. Rear Fork width for installation: 200mm

18. Cross Section of Phase wire: 4 mm2

19. Hall sensor phasing angle: 120 degree

20. Temperature Sensor: Optional

21. Max. Working Temperature: 70 degree, Peak 120 degree

22. Waterproof Grade: IP67

23. N.W./ G..W. : 15kgs / 16kgs

24. Package Size: 44*43*34CM
