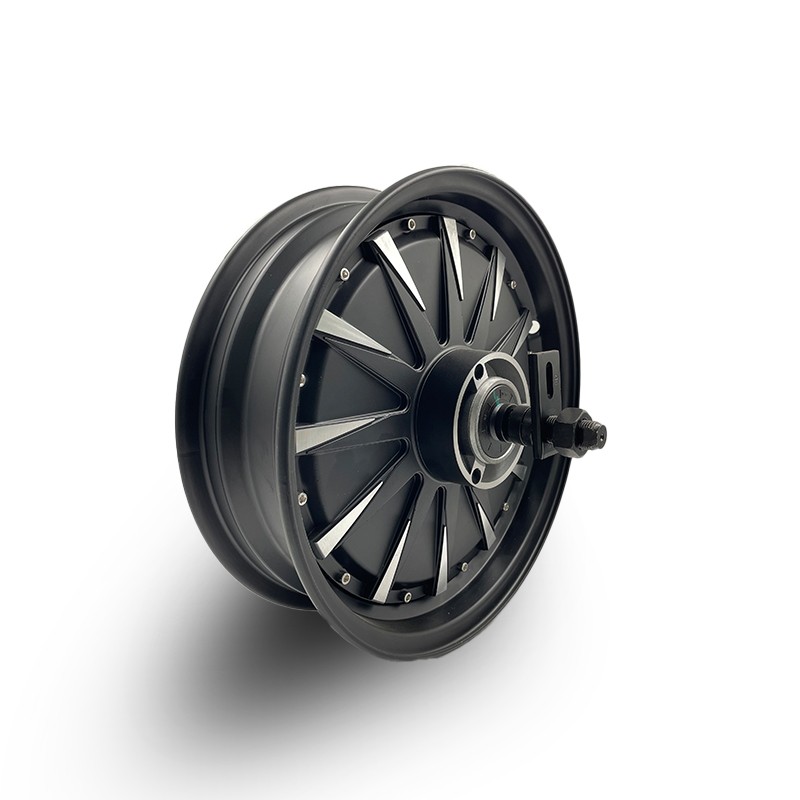

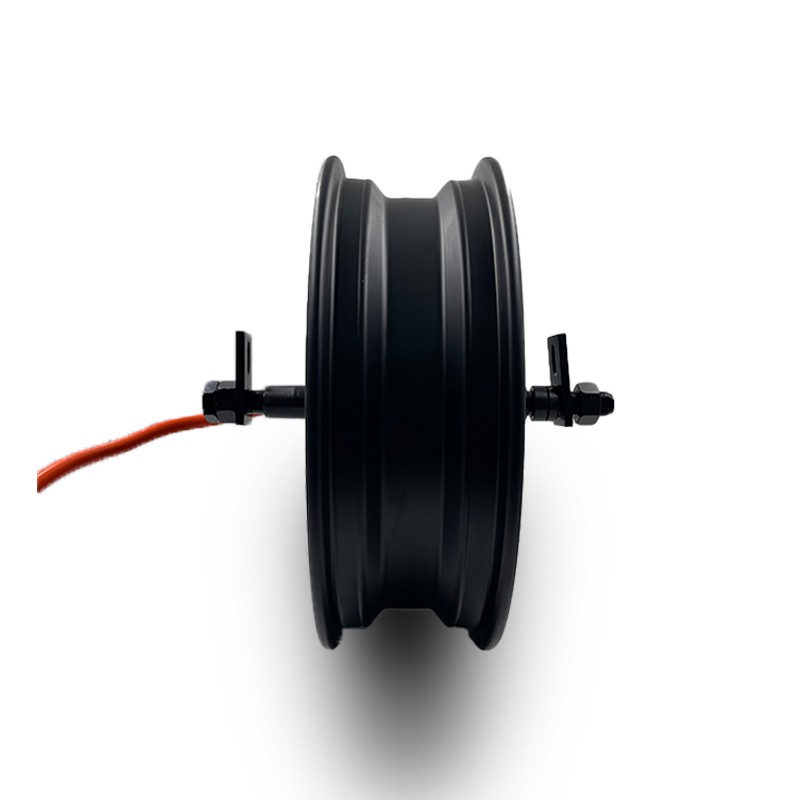

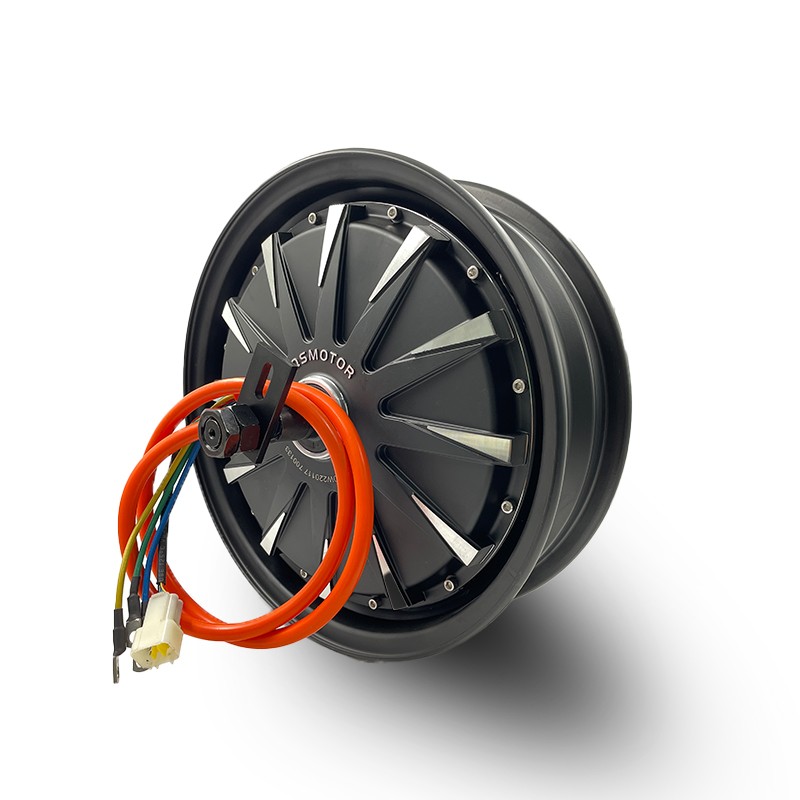

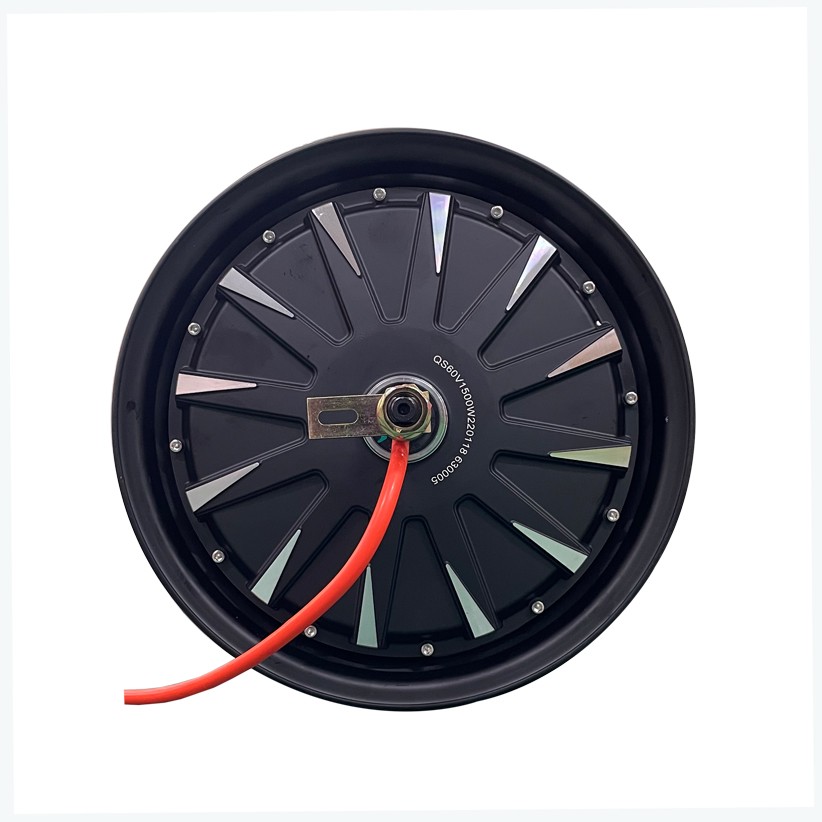

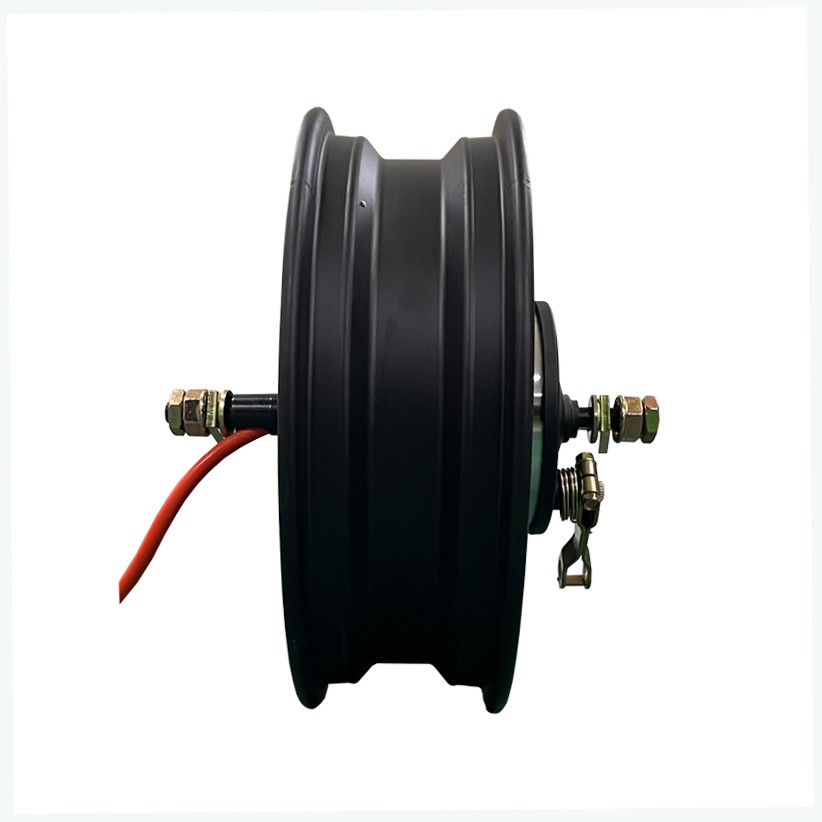

QS254 12in E-Scooter Hub Motor 2000W V1 Type

12inch 254 E-Scooter Hub Motor(35H) 2000W V1 Type

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnet

2. Motor design: Double axle out with 12inch rim

3. Rim size:3.5*12,2.5*12

4. Matching Tire: 120/70-12,100/80-12

5. Magnet Height: 35MM

6. No. of Pole Pairs: 24 pairs

7. Rated Power: 2000W

8. Max Power: 3200W

9. Rated Voltage: 48V( 60V/72V Can be optional)

10. Speed: 45km/h (30-65km/h can be customized)

11. Max No-load RPM: 800RPM

12. Max Torque: 120N.M

13. Max Efficiency: 86%

14. Continious current:40A

15. Max current:55A

16. Brake type: 110mm Drum brake

17. Rear Fork width for installation: 200mm

18. Cross Section of Phase wire: 6 mm2

19. Hall sensor phasing angle: 120 degree

20. Temperature Sensor: Optional

21. Max. Working Temperature: 70 degree, Peak 120 degree

22. Waterproof Grade: IP67

23. Color: Black

24. N.W./ G..W. : 15kgs / 16kgs

25. Package Size: 44*43*34CM
