QS273 16in 40H 4000W V3Type

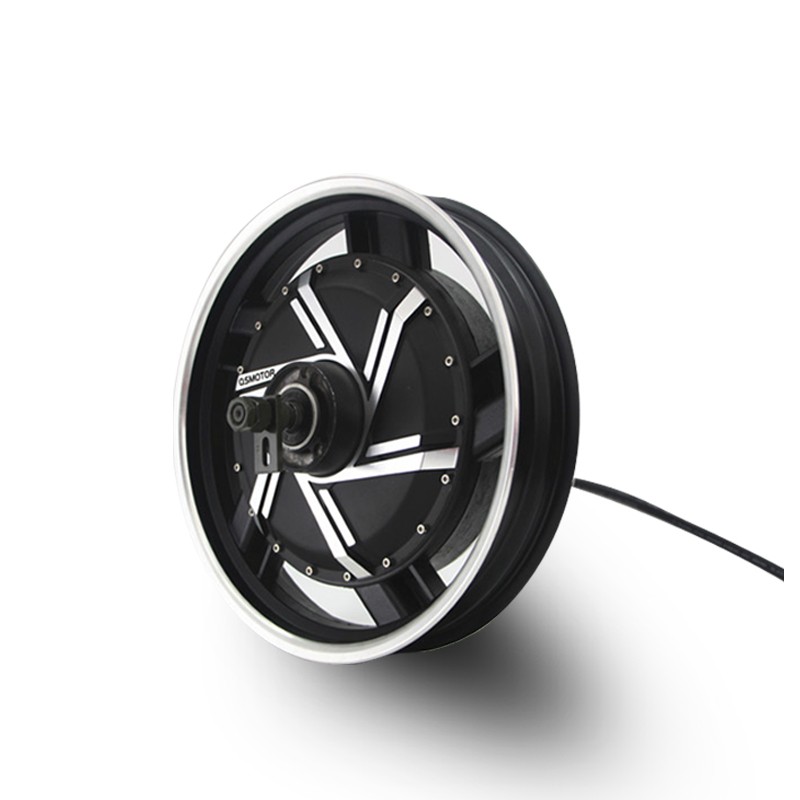

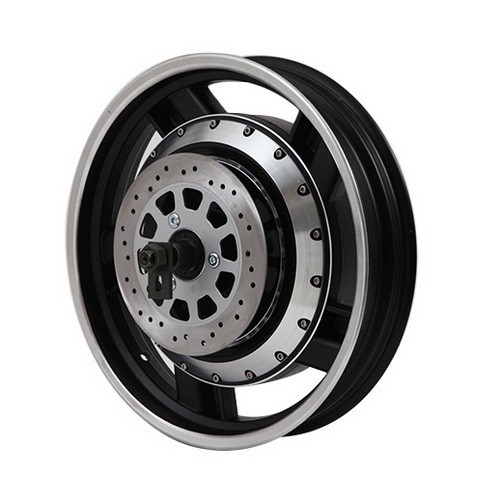

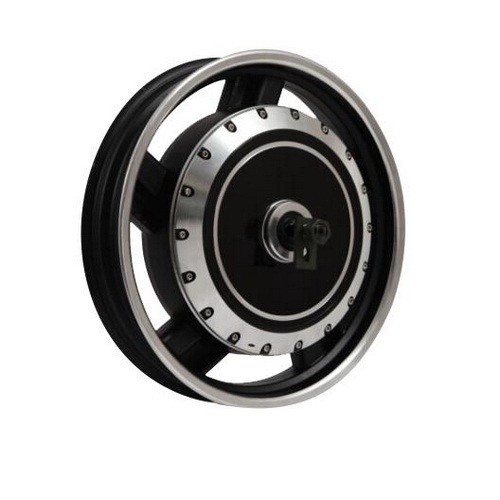

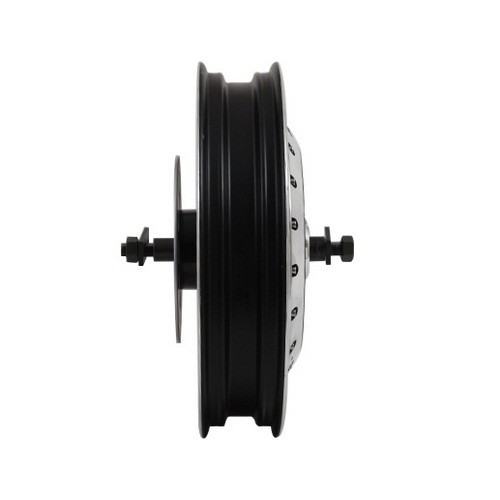

16inch 273 E-Scooter In-Wheel Hub Motor(40H) 4000W V3Type

14inch Hub Motor specially designed for electric scooters and electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnets

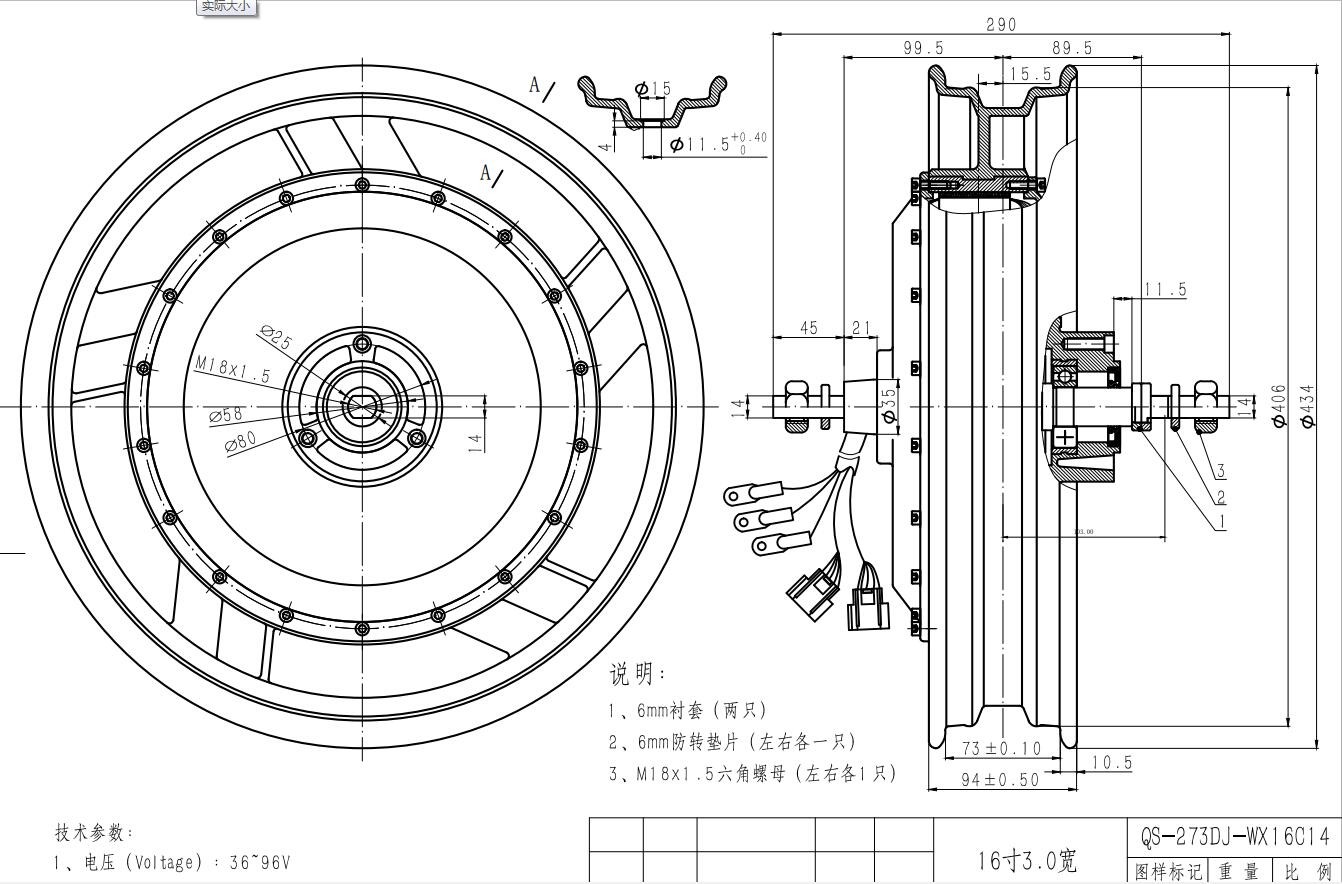

2. Motor design: Double axle out with 16inch Aluminium rim

3. Rim size:3.0x16

4. Matching Tire: 120/60-16

5. Magnet Height: 40MM

6. Pole Pairs: 16 pairs

7. Rated Power: 4000W

8. Max Power:4950W(Peak 8000W)

9. Rated Voltage: 72V( 48-96V Can be optional)

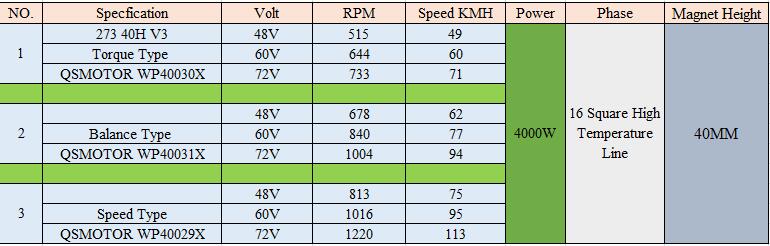

10. Speed:

11. Max Torque: 266N.M

12. Max Efficiency: 90%

13. Continious current:67A

14. Max current:80A Peak 140A

15. Brake type: Disc brake

16. Rear Fock width for installation: 200mm

17. Winding Holder material: Aluminium

18. Cross Section of Phase wire: 16 mm2

19. Hall sensor phasing angle: 120 degree

20. Temperature Sensor:KTY83-122

21. Max. Working Temperature: 70-120 degree, Peak 150 degree

22. Waterproof Grade: IP66

23. N.W./ G..W. : 21kgs / 22kgs

24. Package Size: 44*43*34CM
