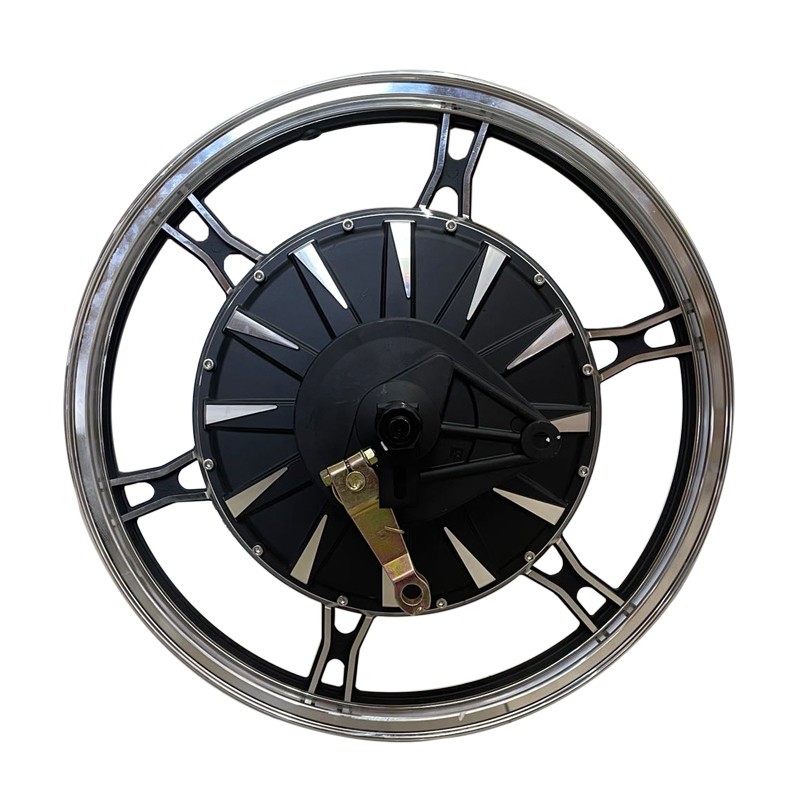

17inch 260 E-Scooter Hub Motor(40H) 3000W V1.3 Type

17inch 260 E-Scooter Hub Motor(40H) 3000W V1.3 Type

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnets

2. Motor design: Double axle out with 17inch rim

3. Rim size:2.5x17, 3.5x17

4. Matching Tire: 110/70-17,90/90-17,120/70-17

5. Magnet Height and Thickness: 40MM

6. Lamination:0.35mm

7. Pole Pairs: 24 pairs

8. Rated Power: 3000W

9. Rated Voltage: 72V

10. Speed: 80-90km/h

11. Max No-load RPM: Approx. 800RPM

12. Max Torque: 198N.M

13. Max Efficiency: 87.5%

14. Brake type: Disc brake

15. Rear Fork width for installation: 200mm

16. Winding Holder material: Iron

17. Bearing model:6206/6205

18. Cross Section of Phase wire: 10mm2

19. Hall sensor phasing angle: 120 degree

20. Temperature Sensor: Optional

21. Max. Working Temperature: 70 degree, Peak 120 degree

22. Waterproof Grade: IP67

23. Color: Black

24. N.W./ G..W. : 17kgs / 18kgs

25. Package Size: 44*43*34CM
