QS273 17in 50H 8000W V4 Type

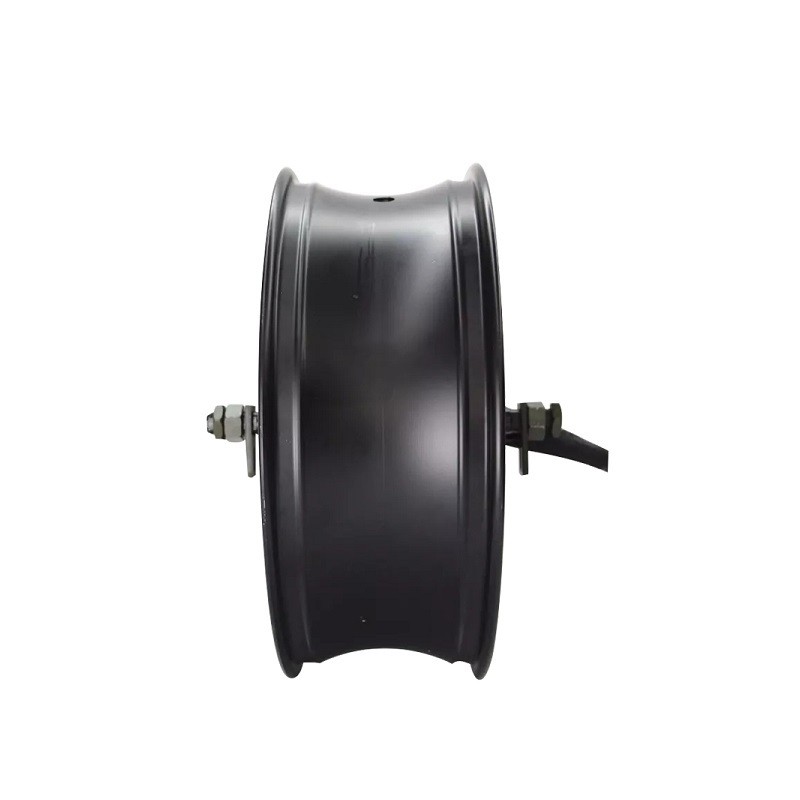

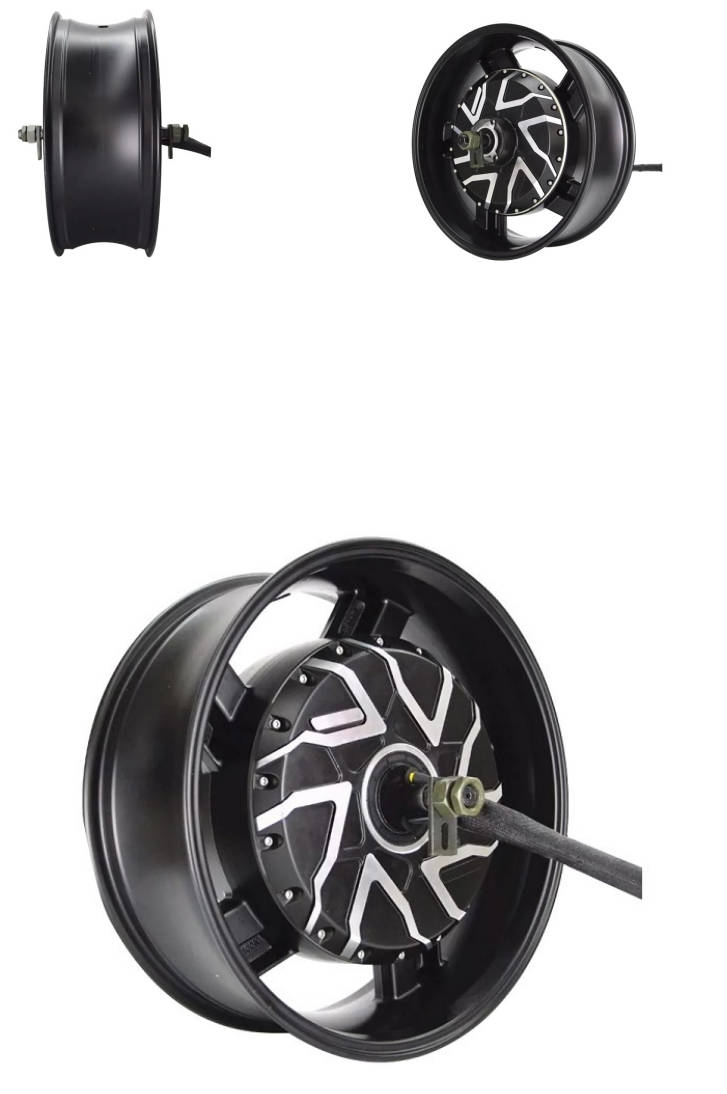

6.0*17inch 273 E-Scooter In-Wheel Hub Motor(50H) 8000W V4 Type

Motor Specification:

1. Motor Type: Brushless DC Hub Motor with Permanent Magnets and Hall sensors

2. Motor design: Double axle out with 17inch Aluminium rim

3. Rim size:6.0x17

4. Matching Tire: 180/70-17 to 220/70-17

5. Magnet Height: 50MM

6. Pole Pairs: 16 pairs

7. Rated Power: 8000W

8. Max Power:12000W(Peak 16000W)

9. Rated Voltage: 48V,60,72V

10. Max.Speed: 60-135km/h

11. Max No-load RPM:1400RPM(can be customized)

12. Max Torque: 300N.M

13. Max Efficiency: 90%

14. Continious current:130A

15. Max current:190A ,Peak 260A

16. Brake type: Disc brake

17. Rear Fork width for installation: 230mm

18. Winding Holder material: Aluminium

19. Cross Section of Phase wire: 20 mm2

20. Hall sensor phasing angle: 120 degree

21. Temperature Sensor: Included

22. Max. Working Temperature: 70 degree, Peak 120 degree

23. Waterproof Grade: IP67

24. N.W./ G..W. : 28kgs / 29kgs

25. Package Size: 58*58*40CM
