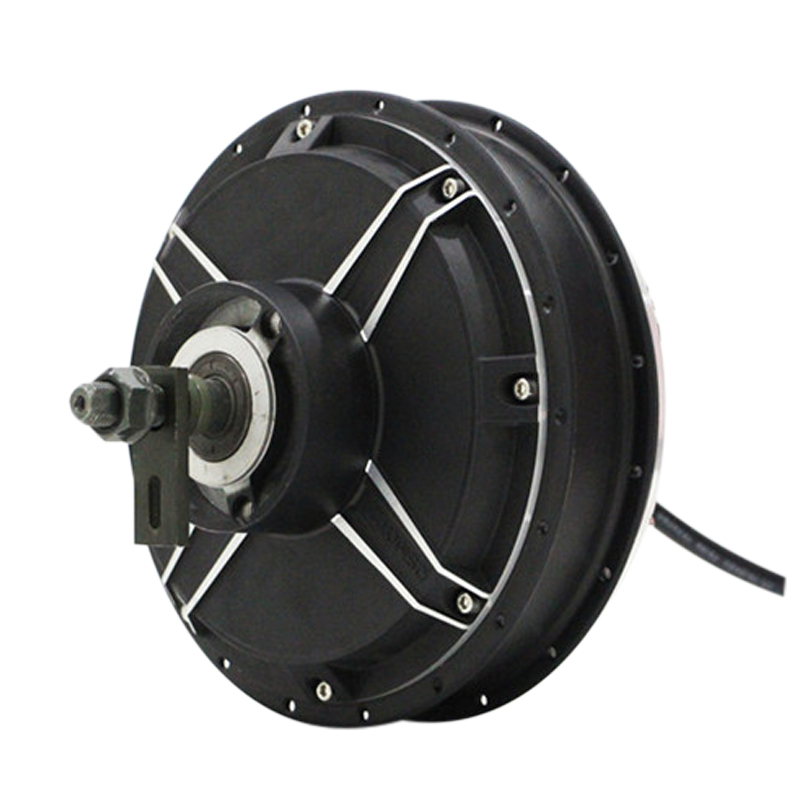

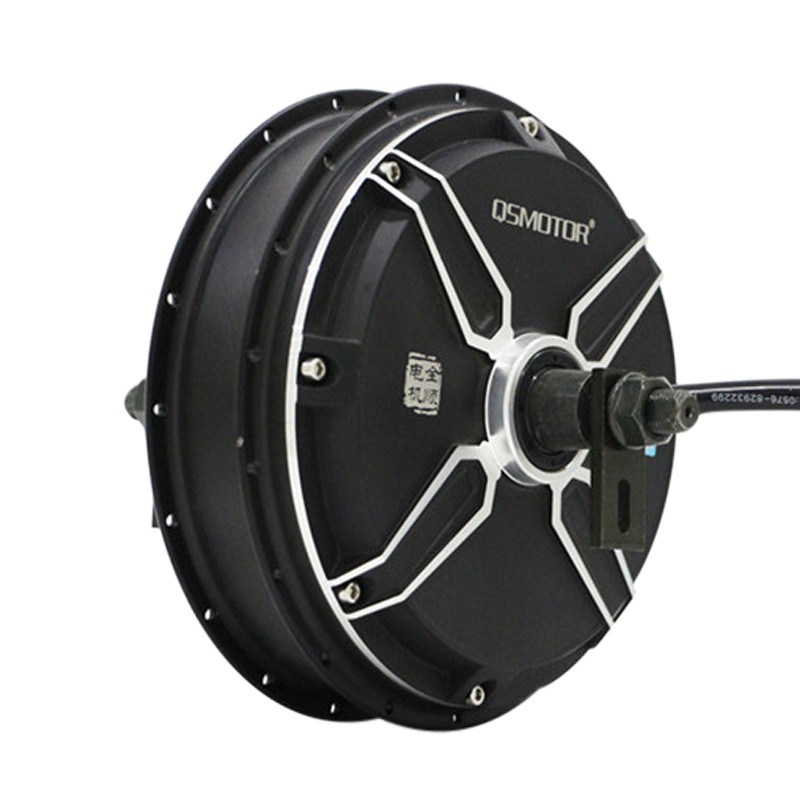

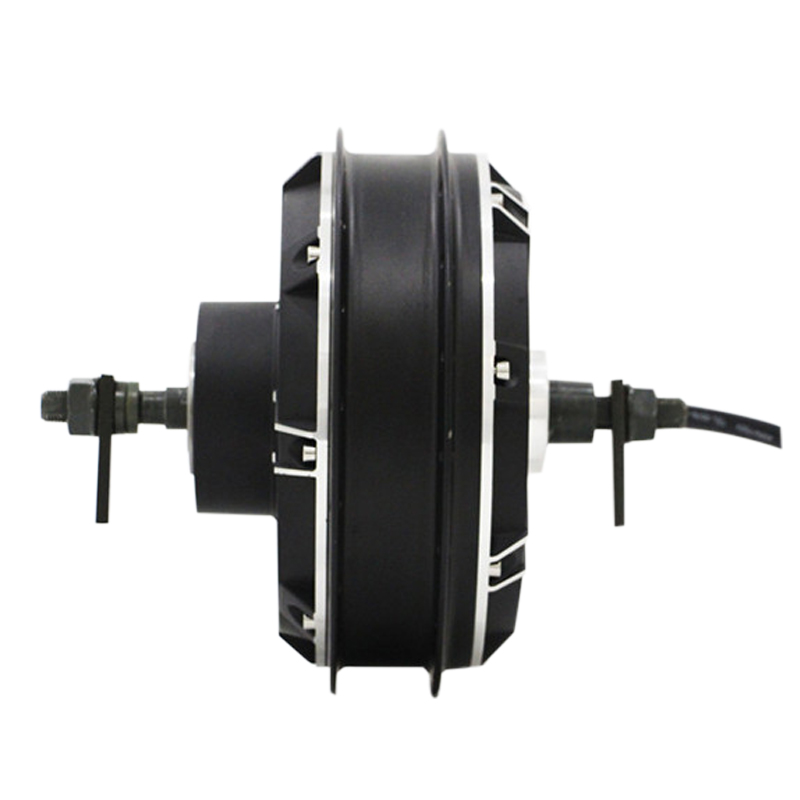

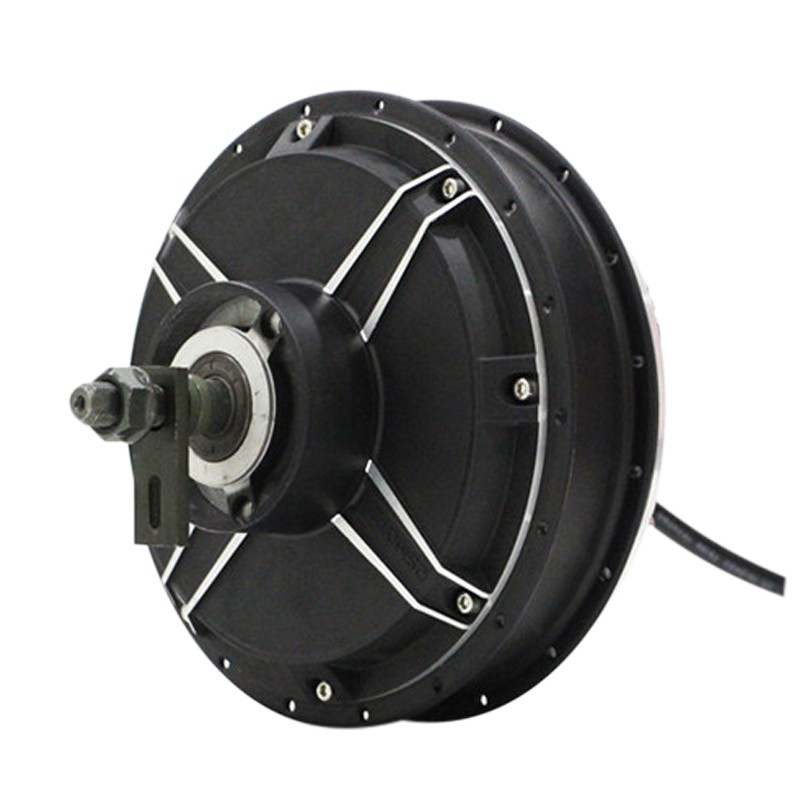

QS 205 Spoke Hub Motor(50H) 3000W V3 For Electric Motorcycle

QS 205 Spoke Hub Motor(50H) 3000W V3 For Electric Motorcycle

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnet

2. Motor design: Double axle out

3. Spoke hole: 3.4mm x 36pcs

4. Matching Rim:16inch-26inch

5. Magnet Height: 50MM

6. No. of Pole Pairs: 16paris

7. Rated Power: 3000W

8. Peak Power: 6000W

9. Rated Voltage: 72V( 48-72V Can be optional)

10. Speed Option:

11. Max Torque: 160N.M

12. Max Efficiency: 90%

13. Continious current:45A

14. Max current:80-100A

15. Brake type: Disc brake or Drum brake

16. Rear Fork width for installation: 200mm

17. Cross Section of Phase wire: 10 mm2

18. Hall sensor phasing angle: 120 degree

19. Temperature Sensor: KTY-83

20. Max. Working Temperature: 70 degree, Peak 120 degree

21. Waterproof Grade: IP66

22. Color: Black

23. N.W./ G..W. : 16kgs / 17kgs
