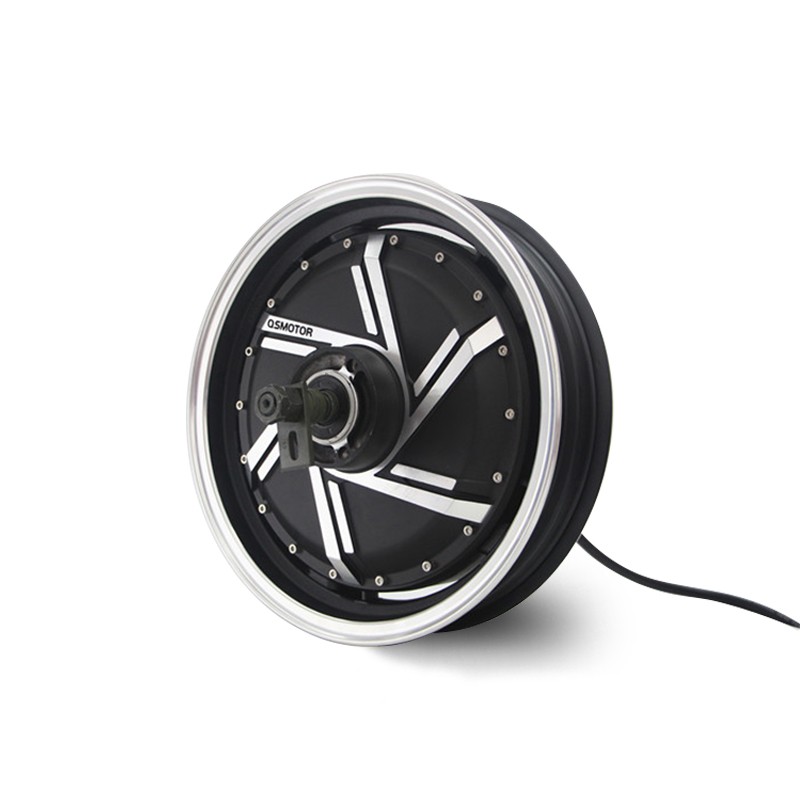

QS273 14in E-Scooter In-Wheel Hub Motor 8000W V2 Type

QS273 14inch E-Scooter In-Wheel Hub Motor(50H) 8000W V2 Type

13inch Hub Motor specially designed for electric scooters and electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnets

2. Motor design: Double axle out with 13inch Aluminium rim

3. Rim size:2.75x14

4. Matching Tire: 110/60-14

5. Magnet Height: 50MM

6. Pole Pairs: 28 pairs

7. Rated Power: 8000W

8. Max Power:11280W(Peak 14000W)

9. Rated Voltage: 72V( 72-144V Can be optional)

10. Speed: 120km/h (30-115km/h can be customized)

11. Max No-load RPM:1400RPM

12. Max Torque: 200N.M

13. Max Efficiency: 89%

14. Continious current:130A

15. Max current:190A ,Peak 260A

16. Brake type: Disc brake

17. Rear Fork width for installation: 200mm

18. Winding Holder material: Aluminium

19. Cross Section of Phase wire: 16 mm2

20. Hall sensor phasing angle: 120 degree

21. Temperature Sensor: KTY83-122

22. Max. Working Temperature: 70 degree, Peak 120 degree

23. Waterproof Grade: IP66

24. N.W./ G..W. : 22kgs / 23kgs

25. Package Size: 44*43*34CM
