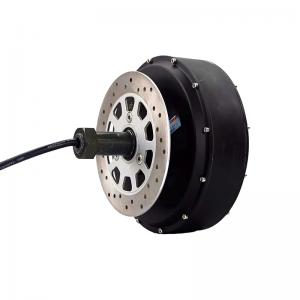

QS273 E-Car Hub Motor(50H) 8000W V3 Type

QS273 E-Car Hub Motor(50H) 8000W V3 Type

273 Single Shaft Car Hub Motor specially designed for Electric Car or 4-wheel electric vehicles, the rated power can be made 5000W,6000W OR 8000W for options.

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnet

2. Motor design: Single axle out without rim

3. PCD for rim installation: 4 x100mm, 5x114.3mm

4. CB:60MM/70MM

5. Magnet Height:50MM

6. Pole Pairs: 16 pairs

7. Rated Power: 8000W V3

8. Peak Power: 16000W

9. Rated Voltage: 72V( 60V-144V Can be optional)

10. Speed Options:

11. Max Torque: 350N.M

12. Max Efficiency:90%

13. Continious current:88A

14. Max current:120A (Peak 170A in short time)

15. Brake type: Disc brake

16. Winding Holder material: Aluminium

17. Cross Section of Phase wire: 16 mm2

18. Hall sensor phasing angle: 120 degree

19. Temperature Sensor: KTY83-122

20. Max. Working Temperature: 70-120 degree, Peak 150 degree

21. Waterproof Grade: IP66

22. Color: Black

23. N.W./ G..W. : 25kgs /26kgs

24. Package Size: 44*43*34CM
