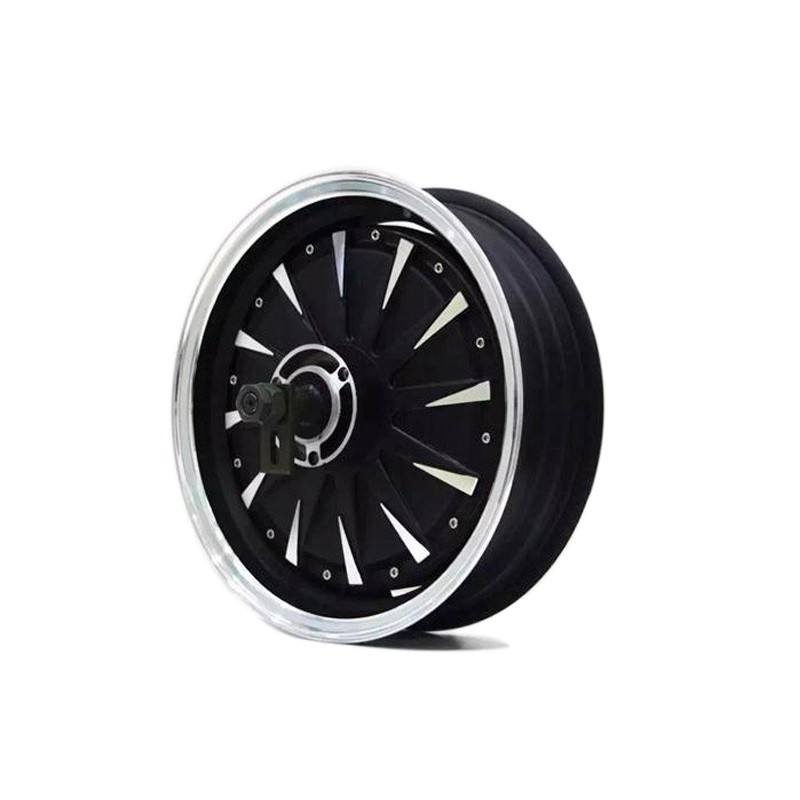

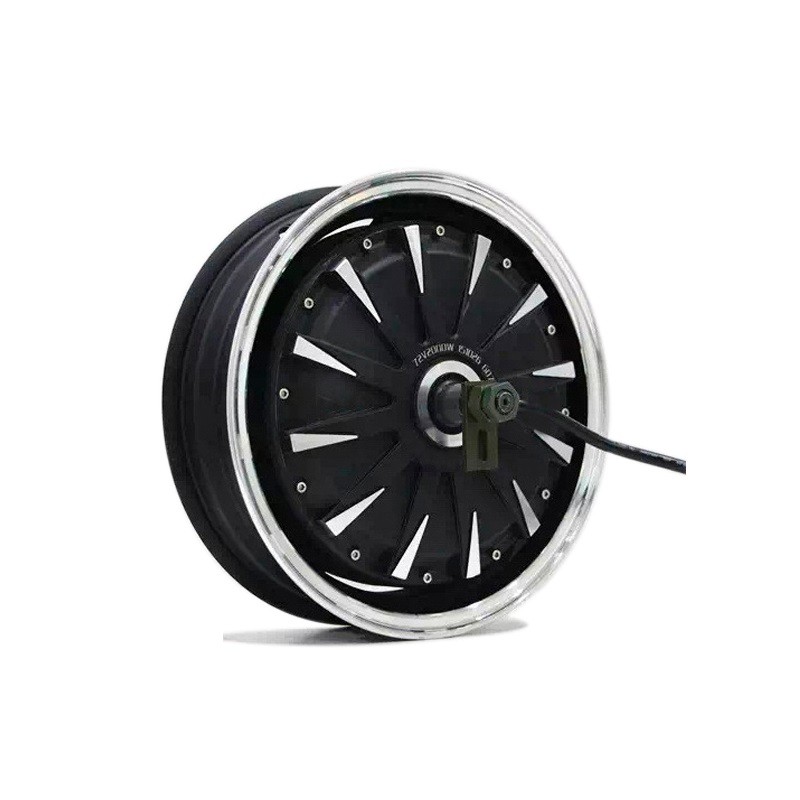

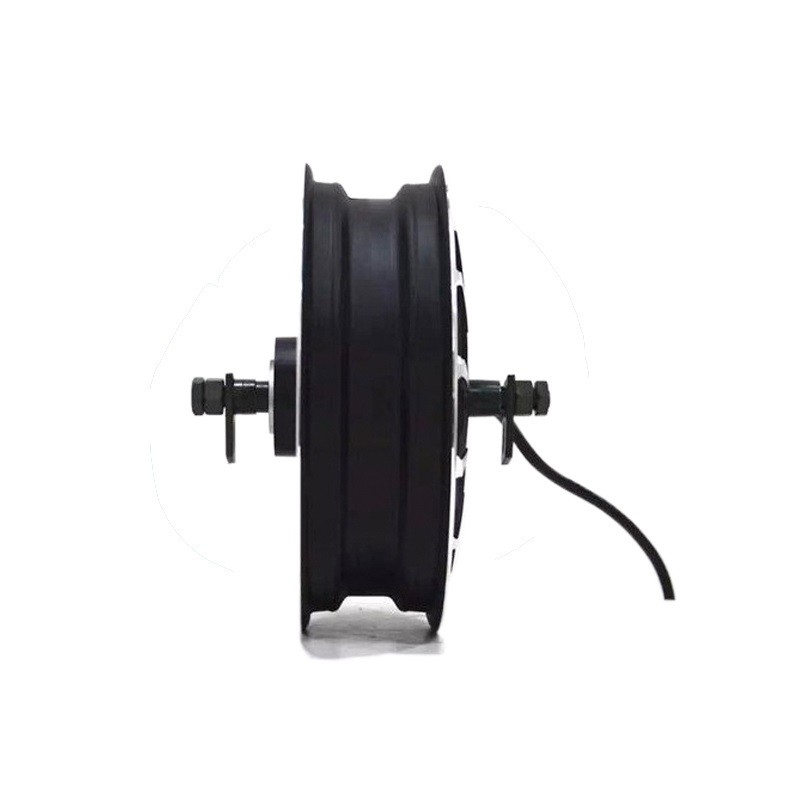

QS260 13In E-Scooter Hub Motor 2000W V4Type

QS260 13Inch E-Scooter Hub Motor(35H) 2000W V4Type

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnets

2. Motor design: Double axle out with 13inch rim

3. Rim size:3.5x13

4. Matching Tire: 120/70-13,130/70-13

5. Magnet Height: 35MM

6. Pole Pairs: 16 pairs

7. Rated Power: 2000W

8. Peak Power: 4000W

9. Rated Voltage: 48V/60V/72V

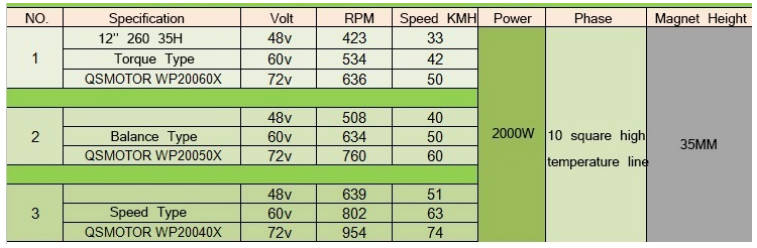

10. Speed options:

11. Max Torque: 190N.M

12. Max Efficiency: 90%

13. Continious current:37A at 60V

14. Max current:70A

15. Brake type: Disc brake

16. Rear Fork width for installation: 200mm

17. Hall sensor: Two group of Hall sensors(Model:SS413F)

18. Winding Frame material: Aluimium

19. Cross Section of Phase wire: 10mm2

20. Hall sensor phasing angle: 120 degree

21. Temperature Sensor: KTY83-122

22. Max. Working Temperature: 70-120 degree, Peak 150 degree

23. Waterproof Grade: IP66

24. Working system: S9

25. Cooling method: Natual

26. Color: Black

27. N.W./ G..W. : 22kgs / 23kgs

28. Package Size: 44*43*34CM
