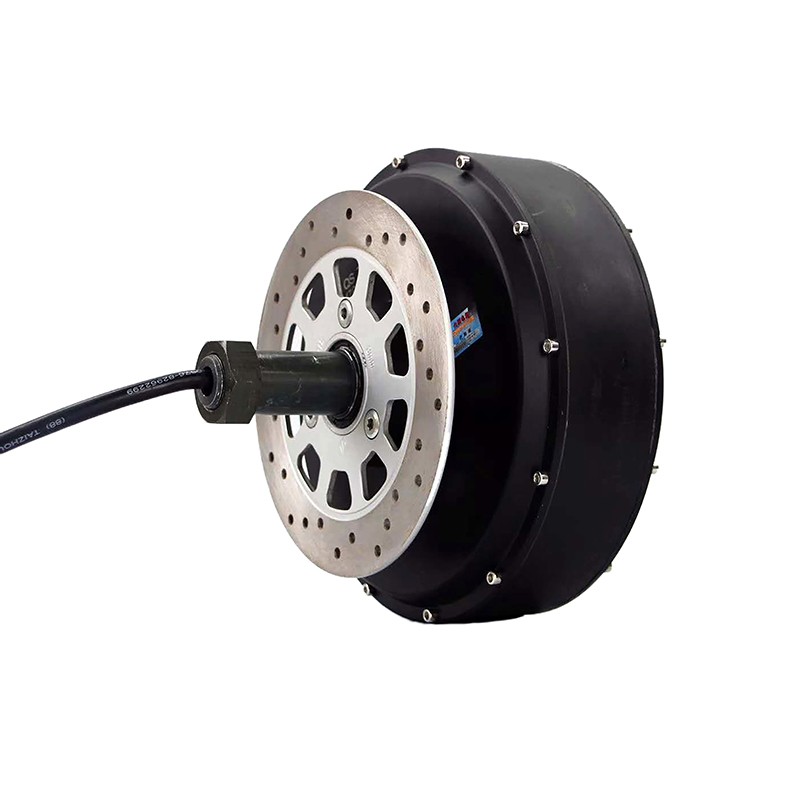

QS260 Single Shaft Electric Car Hub Motor(35H) 2000W V1 Type

QS260 Single Shaft Electric Car Hub Motor(35H) 2000W V1 Type

Motor Specification:

Motor Type: BLDC Hub Motor with Permanent Magnets

Motor design: 260 Single shaft out Hub Motor

Bolts Pattern: PCD:4 x 100MM  CB:60mm

Magnet: 35H Straight magnets

Pole Pairs: 24 Pairs

Rated Power:2000W

Peak Power: 3000W

Rated Voltage: 72V( 48V-72V Can be optional)

Max No-load RPM: 760RPM

Max Torque: 160N.M

Max Efficiency: 88%

Brake type: Disc brake

Winding Holder material: Steel

Cross Section of Phase wire: 10mm2

Hall sensor phasing angle: 120 degree

Temperature Sensor: Optional

Max. Working Temperature: 70 degree, Peak 120 degree

Waterproof Grade: IP66

N.W./ G..W. : 18kgs / 20kgs

Package Size: 44*43*41CM
