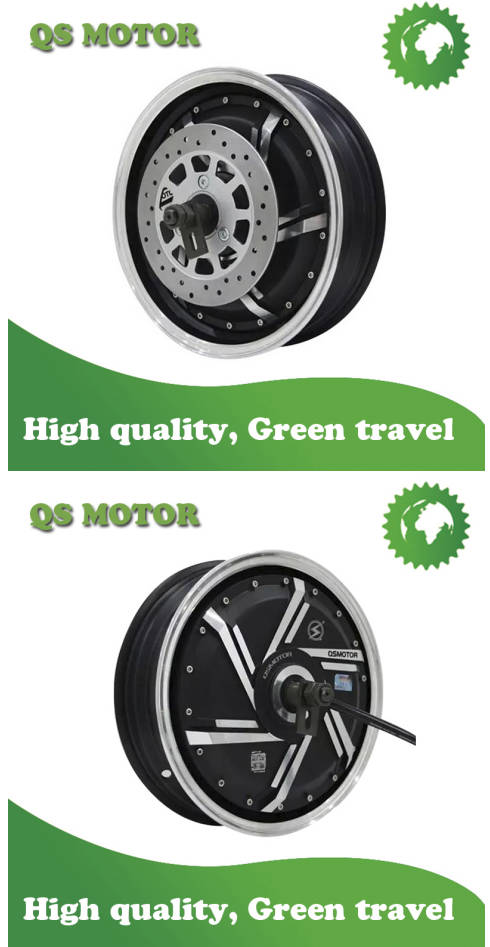

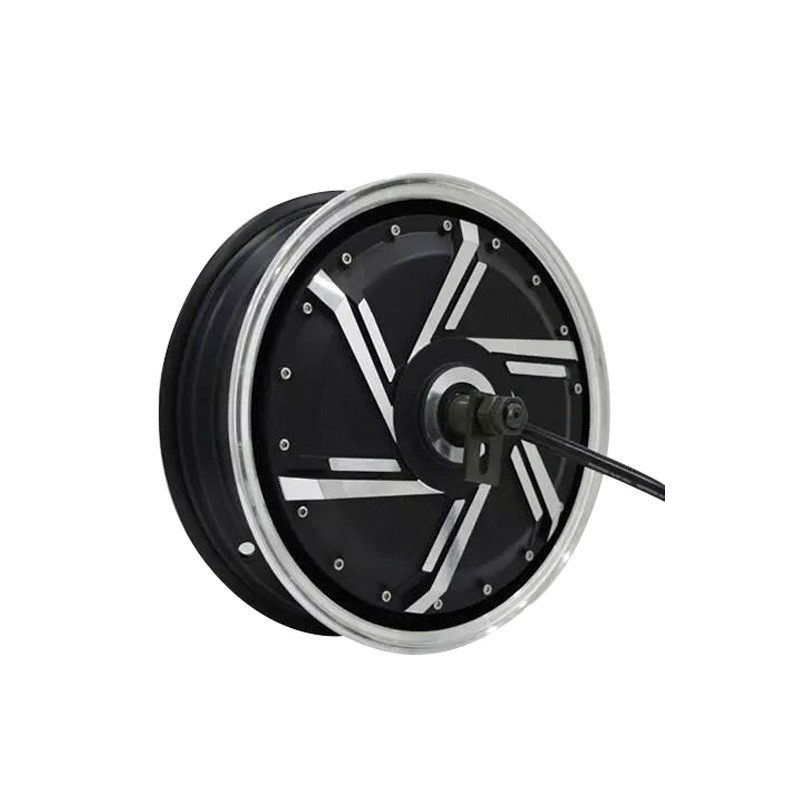

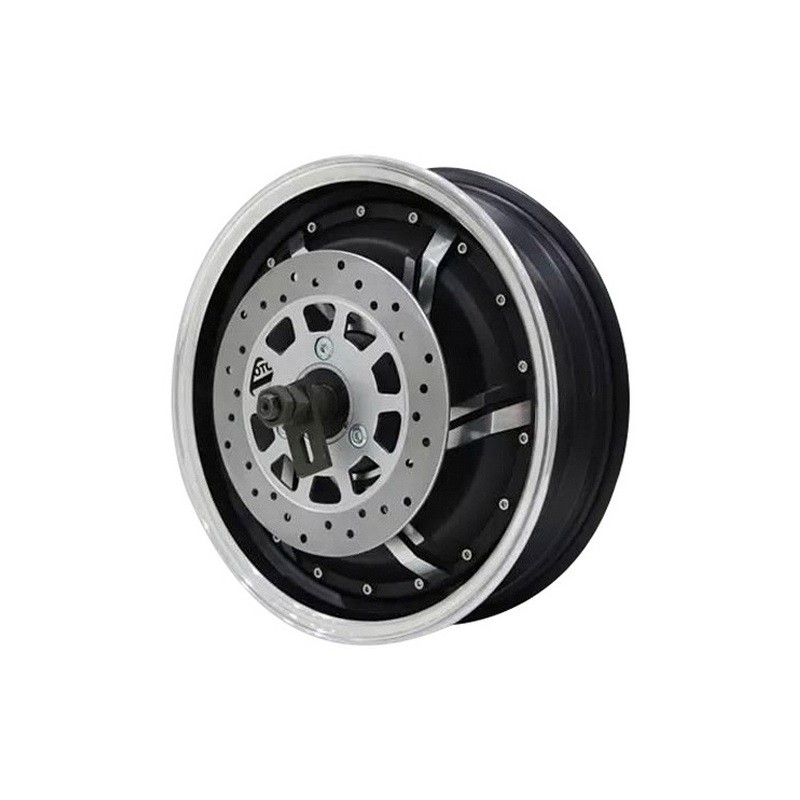

QS273 13in E-Scooter Hub Motor 4000W V3Type

13inch 273 E-Scooter In-Wheel Hub Motor(40H) 4000W V3Type

14inch Hub Motor specially designed for electric scooters and electric motorcycle, the rated power can be made 2kw,3kw,4kw,5kw,6kw,7kw or 8kw. Max speed can be customized from 30-120KMPH.

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnets

2. Motor design: Double axle out with 14inch Aluminium rim

3. Rim size:3.5*13

4. Matching Tire: 130/70-13

5. Magnet Height: 40MM

6. Pole Pairs: 16 Pairs

7. Rated Power: 4000W

8. Peak Power(Potential): 8000W

9. Rated Voltage: 72V( 48-120V Can be optional)

10. Max.Speed(On72V): 85KPH,100KPH,116KPH

11. Kv Options: 13.9 / 16.9/ 19.8

12. Max Torque: 225N.M

13. Max Efficiency: 88%

14. Brake type: Disc brake

15. Rear Fock width for installation: 200mm

16. Winding Frame material: Aluminium

17. Cross Section of Phase wire: 16 mm2

18. Hall sensor phasing angle: 120 degree

19. Temperature Sensor: Optional

20. Max. Working Temperature: 70-120 degree, Peak 150 degree

21. Waterproof Grade: IP66

22. N.W./ G..W. : 22kgs / 23kgs

23. Package Size: 44*43*34CM
