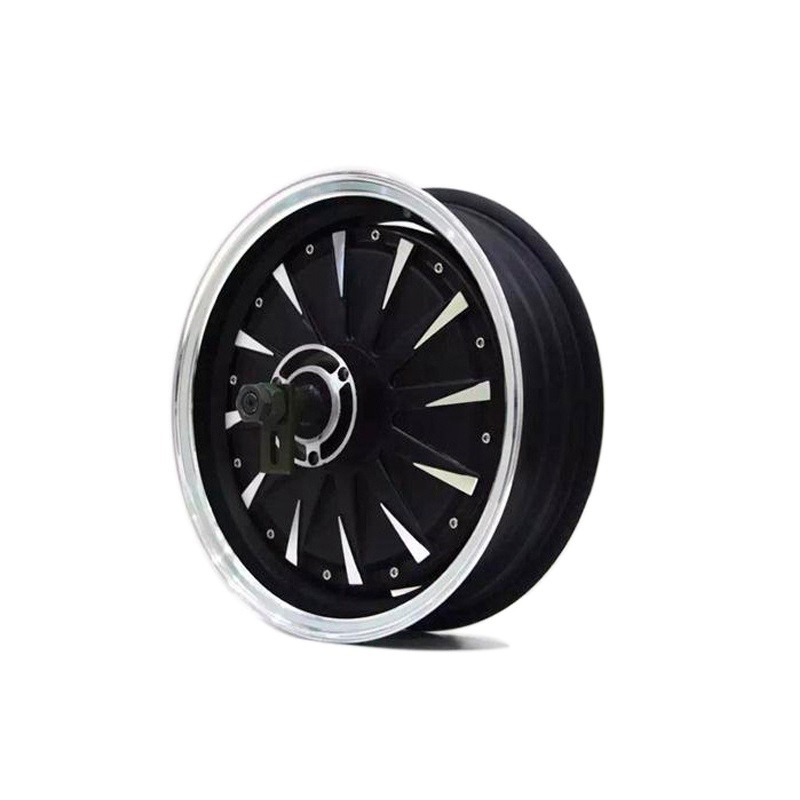

QS260 13in E-Scooter In-Wheel Hub Motor V1.2 Type

QS260 13inch E-Scooter Hub Motor 40H V1.2 Type

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnets bigger groove winding

2. Motor design: Double axle out with 13inch rim

3. Rim size:3.5x13

4. Matching Tire: 130/70-13

5. Magnet Height and Thickness: 40MM

6. Lamination:0.35mm

7. Pole Pairs: 24pairs

8. Norminal Power: 3000W

9. Rated Voltage: 48V/60V/72V

10. Speed: 40-70km/h(Can be customized)

11. Max No-load RPM: 400-900RPM(Can be customized)

12. Max Torque: 150N.M

13. Max. working current: 70A

14. Max Efficiency: 88%

15. Brake type: Disc brake

16. Rear Fork width for installation: 200mm

17. Bearing model:6206/6205

18. Cross Section of Phase wire: 8mm2

19. Hall sensor phasing angle: 120 degree

20. Temperature Sensor: KT83-122

21. Max. Working Temperature: 80 degree, Peak 120 degree

22. Waterproof Grade: IP66

23. Color: Black

24. N.W./ G..W. : 17kgs / 18kgs

25. Package Size: 44*43*34CM
