QS273 17in 45H 6000W V3 Type

17inch 273 E-Scooter In-Wheel Hub Motor(45H) 6000W V3 Type

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnets

2. Motor design: Double axle out with 17inch Aluminium rim

3. Rim size:3.5x17

4. Matching Tire: 130/70-17

5. Magnet Height: 45MM

6. Pole Pairs: 16 pairs

7. Rated Power: 6000W

8. Max Power:10390W

9. Rated Voltage: 72V( 72-144V Can be optional)

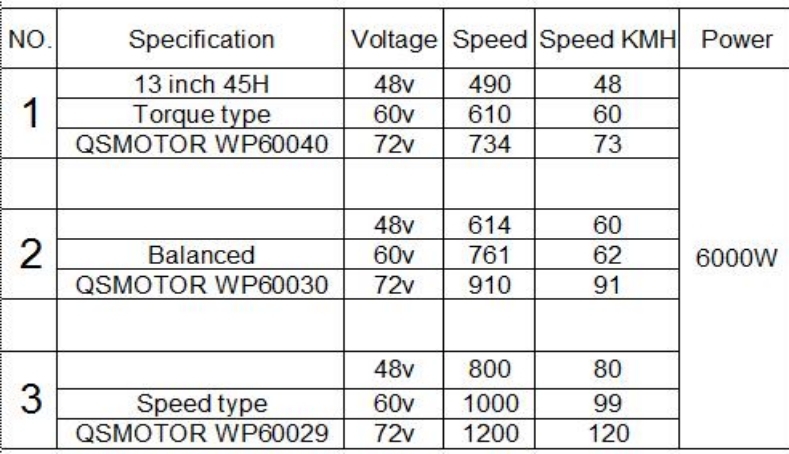

10. Speed List

11. Max Torque: 290N.M

12. Max Efficiency: 91%

13. Continious current:91A

14. Max current:150A

15. Brake type: Disc brake

16. Rear Fork width for installation: 200mm

17. Winding Frame material: Aluminium

18. Cross Section of Phase wire: 16 mm2

19. Hall sensor phasing angle: 120 degree

20. Temperature Sensor: KTY83-122

21. Max. Working Temperature: 70-120 degree, Peak 150 degree

22. Waterproof Grade: IP66

23. N.W./ G..W. : 25kgs / 27kgs

24. Package Size: 58*58*40CM
