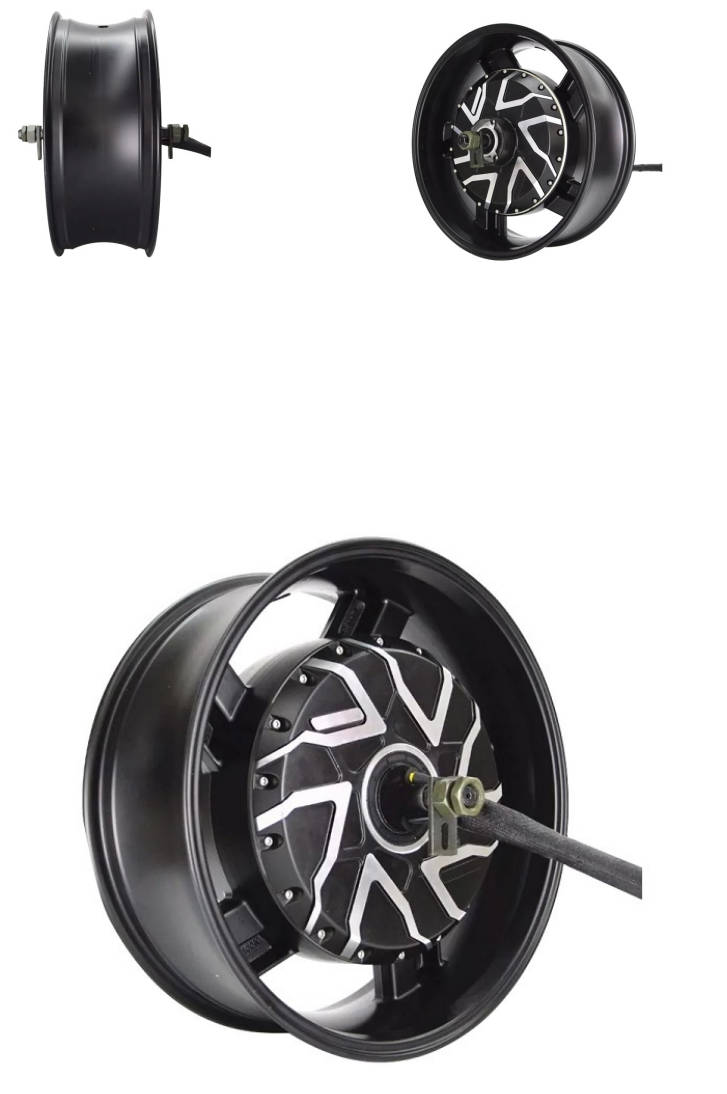

QS273 17in 45H 6000W V4 Type

17inch 273 E-Scooter In-Wheel Hub Motor(45H) 6000W V4 Type

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnets

2. Motor design: Double axle out with 17inch Aluminium rim

3. Rim size:6.0x17

4. Matching Tire: 180/70-17 to 220/70-17

5. Magnet Height: 45MM

6. No. of Pole Pairs: 16 pairs

7. Rated Power: 6000W

8. Max. Power:12000W

9. Rated Voltage: 72V( 72-144V Can be optional)

10. Speed: 100km/h (30-120km/h can be customized)

11. Max No-load RPM:1400RPM

12. Max Torque: 250N.M

13. Max Efficiency: 91%

14. Continious current:91A

15. Max current:150A

16. Brake type: Disc brake

17. Rear Fork width for installation: 200mm

18. Winding Frame material: Aluminium

19. Cross Section of Phase wire: 16 mm2

20. Hall sensor phasing angle: 120 degree

21. Temperature Sensor: Optional

22. Max. Working Temperature: 70 degree, Peak 120 degree

23. Waterproof Grade: IP67

24. N.W./ G..W. : 27kgs / 28kgs

25. Package Size: 58*58*40CM
