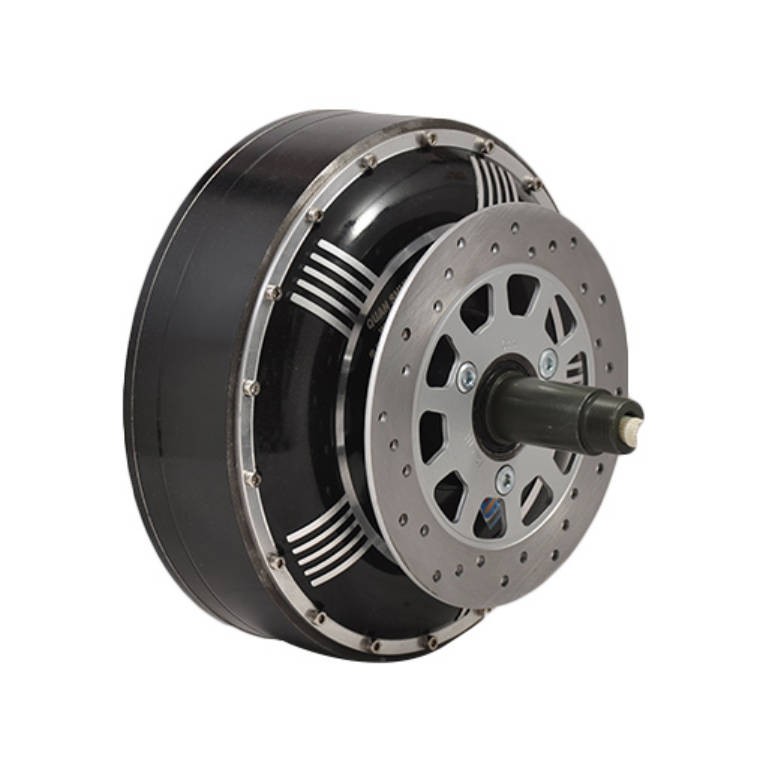

QS273 E-Car Hub Motor(45H) 5000W V2 Type

QS273 E-Car Hub Motor(45H) 5000W V2 Type

273 Single Shaft Car Hub Motor specially designed for Electric Car or 4-wheel electric vehicles, the rated power can be made 5000W,6000W OR 8000W for options.

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnet

2. Motor design: Single axle out without rim

3. PCD for rim installation: 4 x100mm, 5x114.3

4. CB:60MM/70MM

5. Magnet Height:45MM

6. Pole Pairs: 28 pairs

7. Rated Power: 5000W V2

8. Peak Power: 7576W(Peak 1000W)

9. Rated Voltage: 72V( 60V-144V Can be optional)

10. Speed: 80km/h (30-80km/h can be customized)

11. Max No-load RPM: 1000RPM

12. Max Torque: 277N.M

13. Max Efficiency: 88%

14. Continious current:80A

15. Max current:120A (Peak 170A in short time)

16. Brake type: Disc brake

17. Winding Holder material: Aluminium

18. Cross Section of Phase wire: 16 mm2

19. Hall sensor phasing angle: 120 degree

20. Temperature Sensor: KTY83-122

21. Max. Working Temperature: 70-120 degree, Peak 150 degree

22. Waterproof Grade: IP66

23. Color: Black

24. N.W./ G..W. : 25kgs /26kgs

25. Package Size: 44*43*34CM
