QS260 12in E-Scooter Hub Motor 3000W V3 Type

QS260 12INCH E-Scooter Hub Motor(40H) 3000W V3 Type

12inch 260 Hub Motor specially designed for electric motorcycle or electric scooters, the rated power can be made at 1500W,2000W,3000W or 5000W. Max speed can be customs at 35-100km/h.

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnets

2. Motor design: Double axle out with 12inch detached rim

3. Rim size:3.5x12

4. Matching Tire: 130/60-12

5. Magnet Height: 40MM Curved Magnets

6. Pole Pairs: 16 pairs

7. Rated Power: 3000W

8. Peak Power: 6000W

9. Rated Voltage: 72V( 48V,60V and 72V Can be optional)

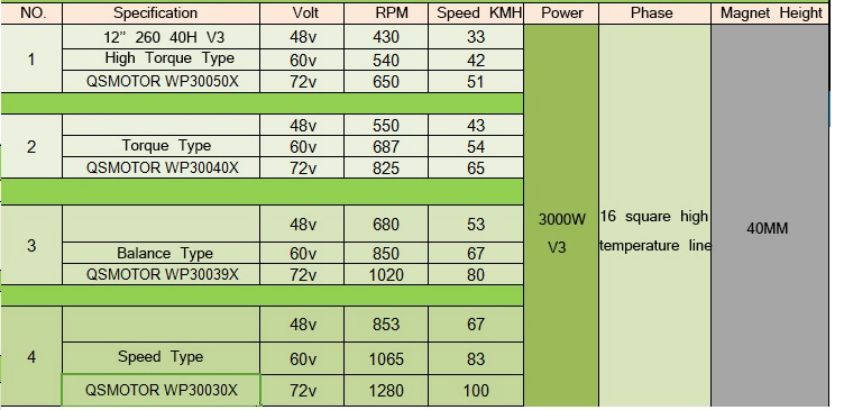

10. Different winding RPM:

11. Max Torque: 240N.M

12. Max Efficiency: 91%

13. Continious current:46A at 72V

14. Max current:80A at 72V

15. Brake type: Disc brake

16. Rear Fork width for installation: 200mm

17. Hall sensor: Two group of Hall sensors(Model:SS413F)

18. Winding Frame material: Aluimium

19. Cross Section of Phase wire: 16mm2

20. Hall sensor phasing angle: 120 degree

21. Temperature Sensor: KTY83-122

22. Max. Working Temperature: 70-120 degree, Peak 150 degree

23. Waterproof Grade: IP66

24. Working system: S9

25. Cooling method: Natual

26. Color: Black

27. N.W./ G..W. : 18.5kgs / 20kgs

28. Package Size: 44*43*34CM
