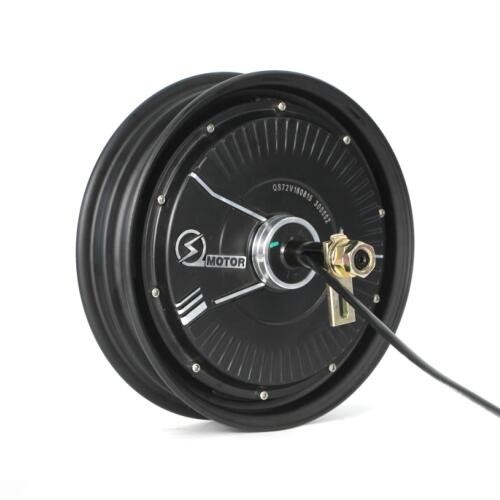

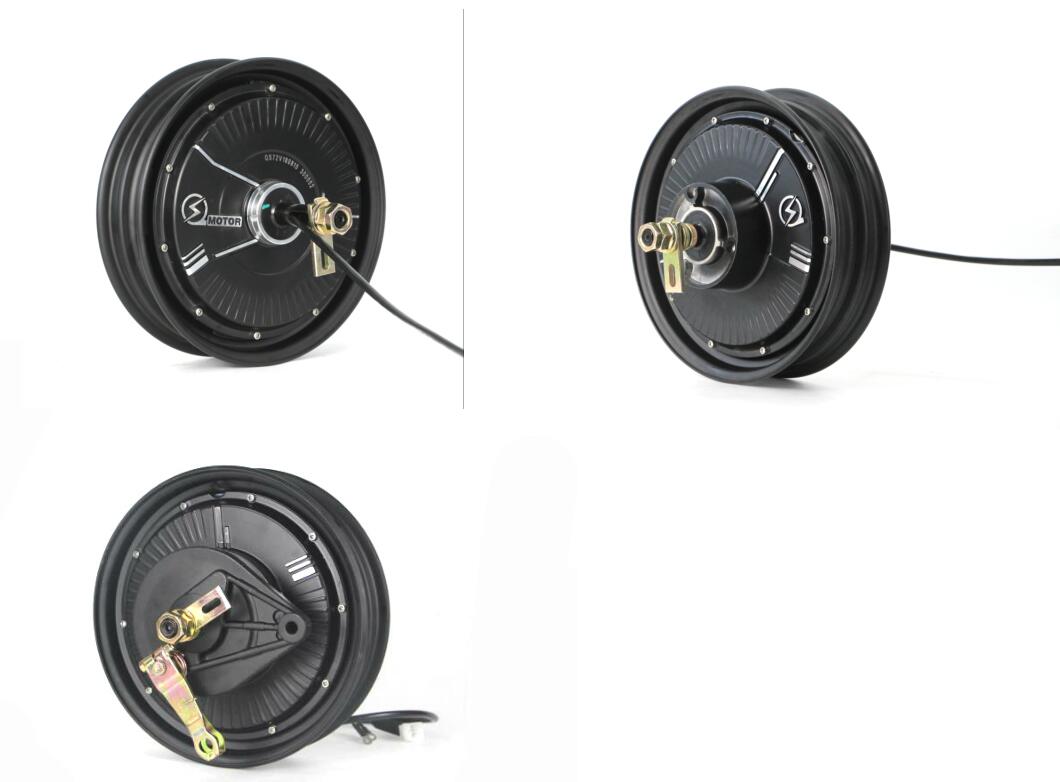

QS212 10in Hub Motor 1200W V1 Type

QS212 10inch E-Scooter In-Wheel Hub Motor(35H) 1200W V1 Type

Motor Specification:

1. Motor Type: BLDC Hub Motor with Permanent Magnets

2. Motor design: Double axle out with 10inch rim

3. Rim size and material:2.15-10 Iron rim

4. Matching Tire: 3.0-10, 3.5-10

5. Magnet Height: 35MM

6. Pole Pairs: 23 pairs

7. Rated Power: 1200W

8. Max Power: 2000W

9. Rated Voltage: 48V( 60V/72V Can be optional)

10. Max. Speed: 20-55km/h for customized

11. Max No-load RPM: 760RPM

12. Max Torque: 100N.M

13. Max Efficiency: 89-90%

14. Rated current:23A

15. Max current:40A

16. Brake type: Disc brake or Drum brake(Optional)

17. Rear Fork width for installation: 200mm

18. Cross Section of Phase wire: 3 mm2

19. Axle thread:M12

20. Hall sensor phasing angle: 120 degree

21. Type of Sensor: Hall Sensor(3pcs)

22. Max. Working Temperature: 70 degree, Peak 120 degree

23. Cooling method:Air cooling

24. Waterproof Grade: IP67

25. N.W./ G..W. : 11kgs / 12kgs
